Uhlenbrock 73416 Intelli Drive 6-pin Mini Decoder
.png)
The standard decoder for small gauges is the 73xxx series. These decoders are available with connecting cables (73300), 6-pin plug according to NEM 651 (73310) and with PluX12 interface (73340).
This can e.g. B. can be used to equip Tillig locomotives. The highlight is the 73236 decoder for locomotives with the Next18 interface. This is even equipped with the Intellimatic.

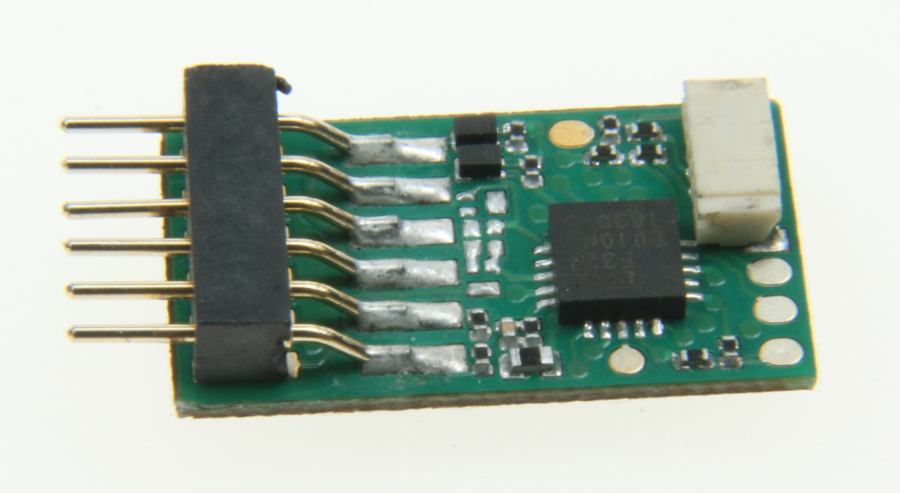

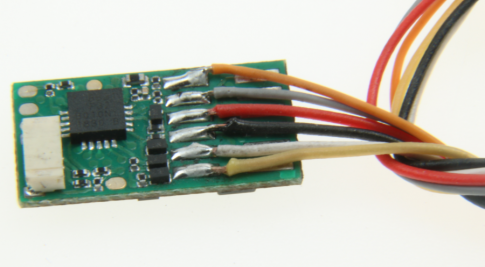

Our new decoders 73406 with connection cables and 73416 with 6-pin plug according to NEM 651 are intended for the smallest locomotives. They are characterized by their very small size, which achieves high performance. Thanks to the built-in protective mechanisms, these decoders are extremely robust even in their small size.
All IntelliDrive 2 decoders have RailComPlus®, Selectrix®, ABC brakes and extended function mapping and can be updated on the rails.
The decoders are equipped with a SUSI or microSUSI interface for easy connection of a sound module. With the Next18 decoder, the SUSI connections can be found on the connector strip.
Together with the IntelliSound microModule or IntelliSound compact module, this results in an extremely small decoder-sound combination.
Item No. 73310 decoder, microSUSI, Multi, DC, control, cable
- For gauge N-TT-H0e-H0m-H0
- For direct current and Faulhaber motors
- Data formats DCC and Motorola
- Max. Motor current 1.5 A,
- light and function outputs 0.4 A
- continuous load 0.8 A
- dimmable light outputs
- With connection option for SUSI or via soldering pads
- Load regulation
- Shunting
- Downward braking delay
- DC analog operation
- All outputs are short-circuit protected
- Size only 15 x 8.6 x 3.9 mm
