Uhlenbrock 73300 Loco Decoder
The standard decoder for small gauges is the 73xxx series. These decoders are available with connection cables (73300), 6-pin plug according to NEM 651 (73310) and with PluX12 interface (73340).
This can e.g. B. be used to equip Tillig locomotives. The highlight is the 73236 decoder for locomotives with the Next18 interface. This is even equipped with the Intellimatic.
Our new decoders 73406 with connecting cables and 73416 with a 6-pin plug according to NEM 651 are intended for the smallest locomotives. They are characterized by their very small size, which achieves high performance. Due to the built-in protection mechanisms, these decoders are extremely robust, even with their small size.
All IntelliDrive 2 decoders have RailComPlus®, Selectrix®, ABC brakes and extended function mapping and can be updated on the rail.
The decoders are equipped with a SUSI or microSUSI interface for easy plugging in of a sound module. With the Next18 decoder, the SUSI connections can be found on the connector strip.
Together with the IntelliSound micro module or IntelliSound compact module, the result is an extremely small decoder-sound combination.

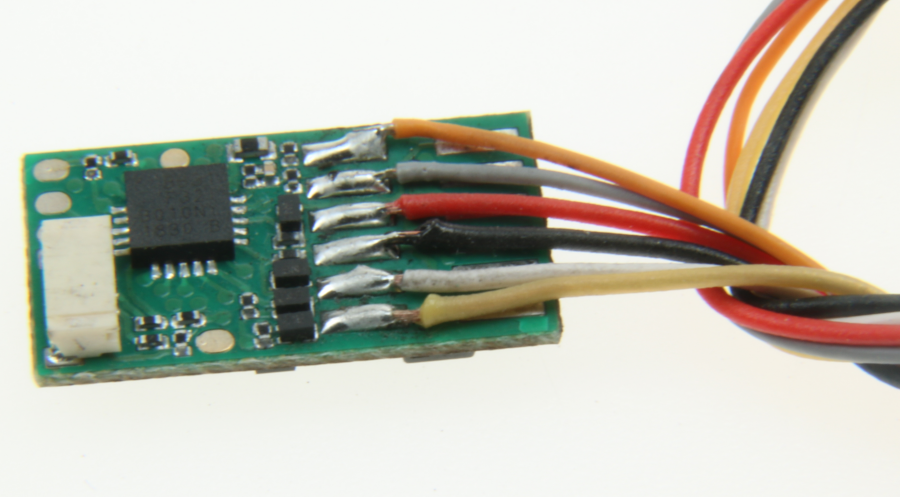

Item No. 73300 decoder, microSUSI, multi, DC, control, cable
Technical data:
- Addresses: 1-9999 (long DCC address)
- Total load/ maximum motor current: 0.8 A, short-term up to 1.5 A
- Function outputs: each 0.4 A
- Size: 15 x 8.6 x 2.4 mm
