This is a starter kit for a Helix suitable for OO gauge British Outline 3rd radius curved track only (Peco, Hornby or Bachmann) .  It comes complete with 2 straight entrance/exit Ramps. It can be built either rising clockwise or anticlockwise.

Our Helix kits are laser cut from 6mm thick Lightweight Poplar ply, not MDF.  Poplar ply being a lot more stable and longer lasting than other substrates.  They come complete with M8 threaded rods, washers and nuts. All joints are fully supported.

The starter kit is for the first circuit and a half rising at approx 80mm (approx 3 5/32 inches) per circuit, so in total it will rise approx 120mm (approx 4 23/32 inches) in height.  As you can see from the picture (image shown shows both 3rd and 4th radius parts), you end up with 72mm from the top of the wooden track bed to the underside which is enough for clearance for steam, diesel and electric locos with Pantographs down, The loco pictures are on code 100 track on top of a 5mm foam bed.

The Inner circuit based on 3rd Radius curves of 505mm has a gradient of 1 in 39 / 2.5%

This pack comes with the following:

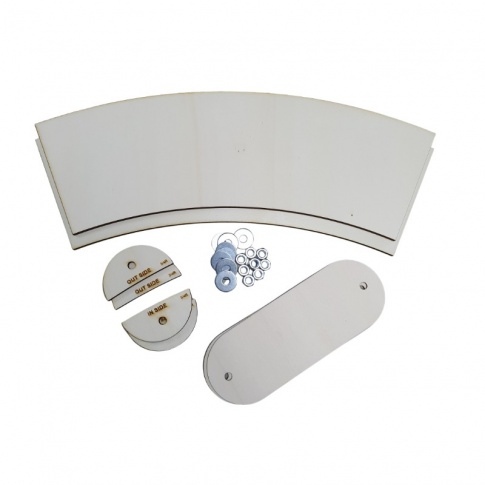

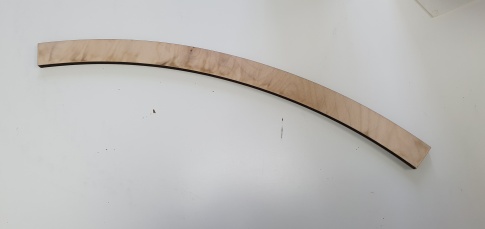

12x 1/8 circle sections.

  2x  Straight sections.

12x  Connecting bridges including 11x inner segment guides, 11x outer segment guides, 2x inner Straight to Circle guides, 2x outer Straight to Circle Guides.

16x M8 Steel threaded rods cut to 500mm approx length required and all required nuts and washers

Additional complete circuits are available with each circuit rising approx 80mm, so a starter kit + one circuit would give you a rise of 200mm, a starter kit and two circuits would give you a rise of 280mm and so on.

Additional 1/4 and 1/2 circuits are also available.

You will ideally need a level surface to start with of 1300mm x 1300mm and basic tools (a drill, 2x 13mm spanners, spirit level) and wood glue.

Other bespoke Radii are available to order please contact us for a quotation.

Please Note:

All Helices are made to order and will take 2-3 weeks to produce.

No Baseboards are included, they are available to special order, please contact us for more info.
