This is an additional circuit kit for our a Helix Starter kit and is suitable for OO gauge British Outline 3rd and 4th radius curved track (Peco, Hornby or Bachmann)and has a track bed 135mm wide. It can follow the starter kit in being built either rising clockwise or anticlockwise.
Our Helix kits are laser cut from 6mm thick Lightweight Poplar ply, not MDF. Poplar ply being a lot more stable and longer lasting than other substrates. All joints are fully supported.
The circuit kit is to increase the total height of the helix by adding additional circuits and each circuit will rise approx 80mm (approx 3 5/32 inches) With the starter kit giving you a height of approx 120mm you will end up with the following.
1 x Additional Circuit Kit + Starter Kit 200mm total rise in height.
2 x Additional Circuit Kits + Starter Kit 280mm total rise in height.
3 x Additional Circuit Kits + Starter Kit 360mm total rise in height.
4 x Additional Circuit Kits + Starter Kit 440mm total rise in height.
5 x Additional Circuit Kits + Starter Kit 520mm total rise in height.
As you can see from the picture, you end up with 72mm from the top of the wooden track bed to the underside which is enough for clearance for steam, diesel and electric locos with Pantographs down, The loco pictures are on code 100 track on top of a 5mm foam bed.
The Inner circuit based on 3rd Radius curves of 505mm has a gradient of 1 in 39 / 2.5%
The outer circuit based on .4th Radius curves of 571mm has a gradient of 1 in 44 / 2.2%
This pack comes with the following:

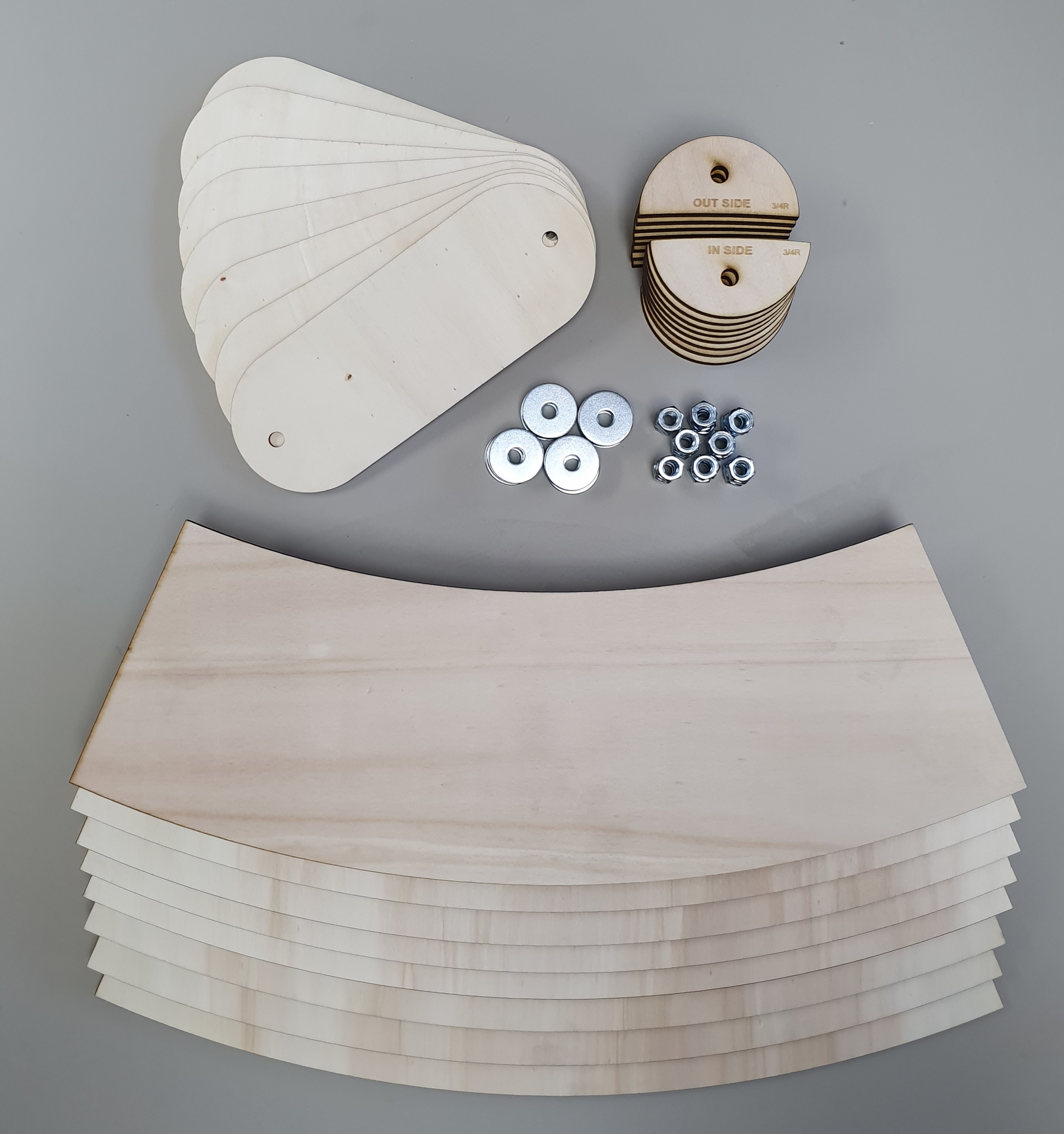

8x 1/8 circle sections.
8x Connecting bridges including 8x inner segment guides, 8x outer segment guides.
All required nuts and washers
You will need our HO/OO 3rd & 4th Radius Curve Starter Kit and basic tools to make your helix
Other bespoke Radii are available to order please contact us for a quotation.
Please Note:
All Helices are made to order and will take approx 2 weeks to produce unless shown in stock.
No Baseboards are included, they are available to special order, please contact us for more info.
