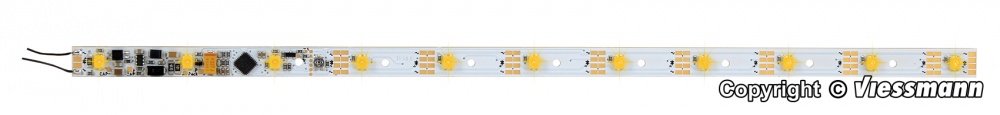

Viessmann 5076 Coach Lighting - 11 LEDs Yellow with Function Decoder HO
Coach lighting with maintenance free, power-saving, bright LEDs with integrated multi protocol decoder (Motorola/DCC).
Brightness adjustable by CVs and potentiometer.
Can be used in any coach of all manufacturers designed to be equipped with lighting.
By shortening the circuit board, it can be adapted to various waggon lengths.
Integrated flickering protection for constant light even with short interruptions of the voltage supply, additional capacitors/power packs can be connected.
Various lighting effects are adjustable, as start-up simulation of track bed inverter or single flickering tubes.
The model offers direction depending switching outputs for front- and rear lighting.
An additional switching output up to 150 mA capacity completes the functionalities.
Power supply by grinder/point unit or conducting couplers items 5048/5071.
Suitable for DC, AC or digital power.
Due to low-loss switching regulator the coach lighting warms up only a bit.
Maximum power input 20 mA.
Measurements:
| Length | 25.4cm |
| Width | 0.8cm |
Instructions:
Coach_Lighting_Manual.pdf
