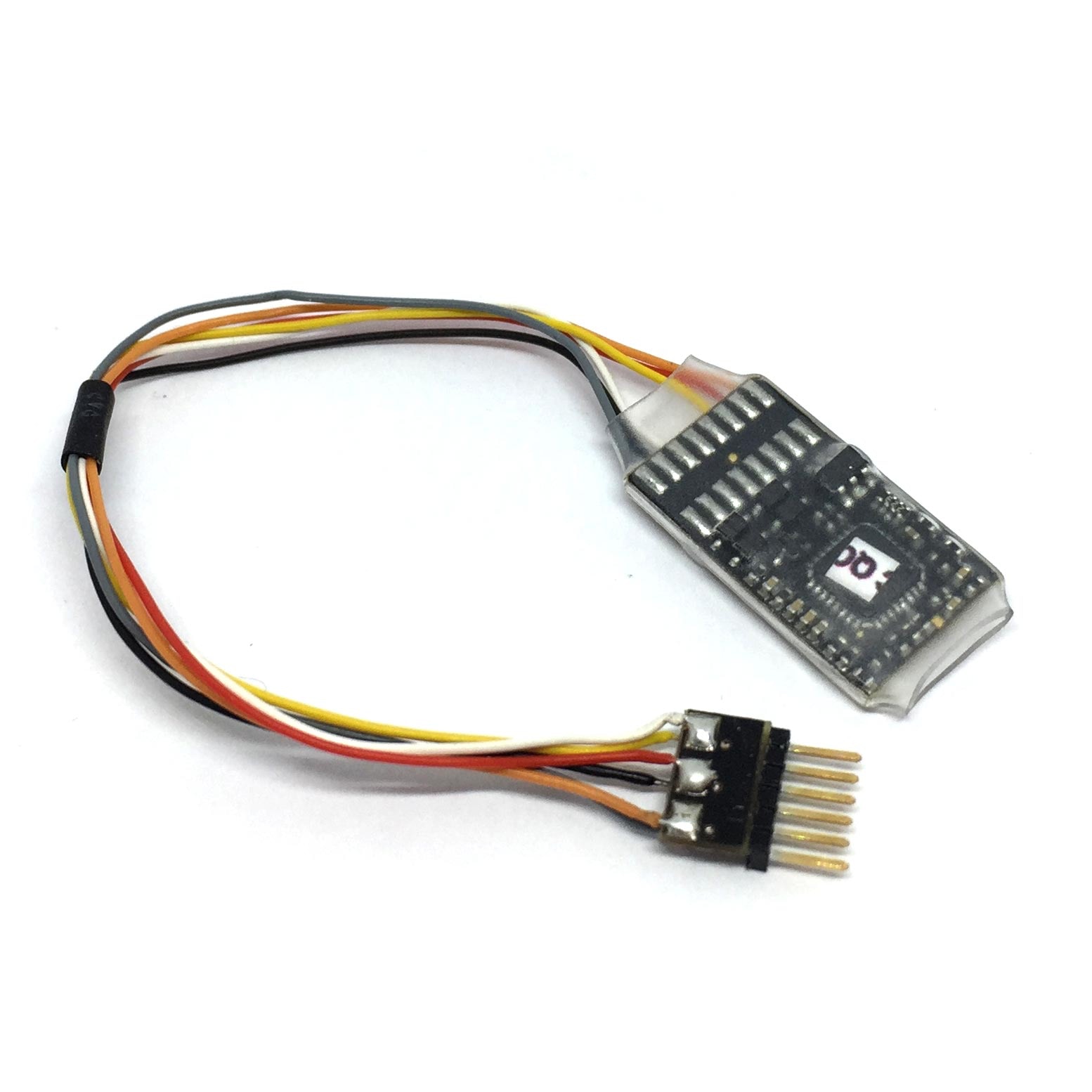

Train-O-Matic Lokommander 2 Mini NEM 651 (6 wires + 6 pins) (W6P)

Spec of the decoder:-

• Size: 19.5 x 11 x 3.3mm

• Functions : 4x AUX: 1 wire, 3 soldering pads

• SUSI:- Solder pads

Lokommander 2 decoder series

- NMRA compliant DCC locomotive decoder

- Short (1-127) and long (128-9999) configurable addresses

- 14, 28/128 speed steps

- Maximum motor current 1000mA

- Load compensation and BEMF

- Speed set at 3 points (Vmin, Vmid, Vmax) or in tabular form

- Shunting speed

- Constant distance braking, activated on ABC/DC sector or at zero speed

- Reduced speed drive on ABC Slow Speed section

- Penduling function (Push-Pull) without or with intermediar stop

- Up to 10 dimmable auxiliary outputs

- Function output maximum 200 mA per output, maximum of all outputs 400mA

-Output Mapping to functions F0, F1-F12

- Short-circuit and over-current protection of motor and auxiliary outputs

- Bidirectional communication RAILCOM

- SUSI© and LocoWire© interface

- Outputs for Smart Power Pack (SPP ©)

- Electromagnetic uncoupler drive capability

- Upgradable software via the programmer, even with the decoder mounted in the locomotive

- Usable in H0, TT and N scale models

- Supply voltage 4-24V

- Ability to set different speeds for forward and reverse
