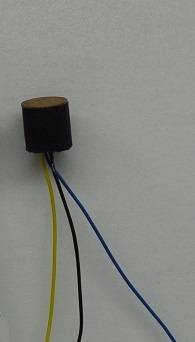

Krois model Car-System 7027, Hall sensor for installation in the road

Hall sensor for the position reporting of vehicles from Krois-Modell Car-System, for a 16-fold feedback module with galvanically isolated opto-coupler inputs.

The sensor is installed before turns, stops, driveways, exits, intersections, etc.

The voltage supply is 12-24Volt

The installation of the sensor is very simple, drill an opening of 8mm diameter in the road and then push the sensor into the opening. The opening can be drilled in the middle of the lane or on the edge of the lane so that the vehicle still reaches over the sensor.

If the sensor is mounted in the middle, the magnet from the grinder is sufficient, but be careful, the magnetic tape should be separated before and after the sensor.

If it is mounted on the edge, the supplied magnet must be glued to the underside of the vehicle. The sensor is camouflaged on the top by a manhole cover.

The cables at the sensor are 150mm long, the blue cable is 12-24 volts plus, the black minus, the yellow cable is connected to the Littfinski module. (310101, 310102, 310103)

Technical specifications:

Size 8mm diameter x 8mm installation depth

Cable 150mm long

Connection 12-24 volts stabilized DC voltage

Blue = plus

Black = minus

Yellow = for the detector
