This is our starter kit for a Helix suitable for N gauge British Outline 3rd radius curved track (Peco) ONLY and has a track bed approx 36mm wide. It can be built either rising clockwise or anticlockwise.

Our Helix kits are laser cut from 6mm thick lightweight Poplar Ply, not MDF.  Poplar ply being a lot more stable and longer lasting than other substrates.  They come complete with M8 threaded rods, washers and nuts. All joints are fully supported.

Our starter kit is for the first circuit and a half rising at approx 72 mm. (allowing for 12mm starting height for initial nuts/washers and divider)

The  3rd Radius curves  has a gradient of 1 in 2.13%.

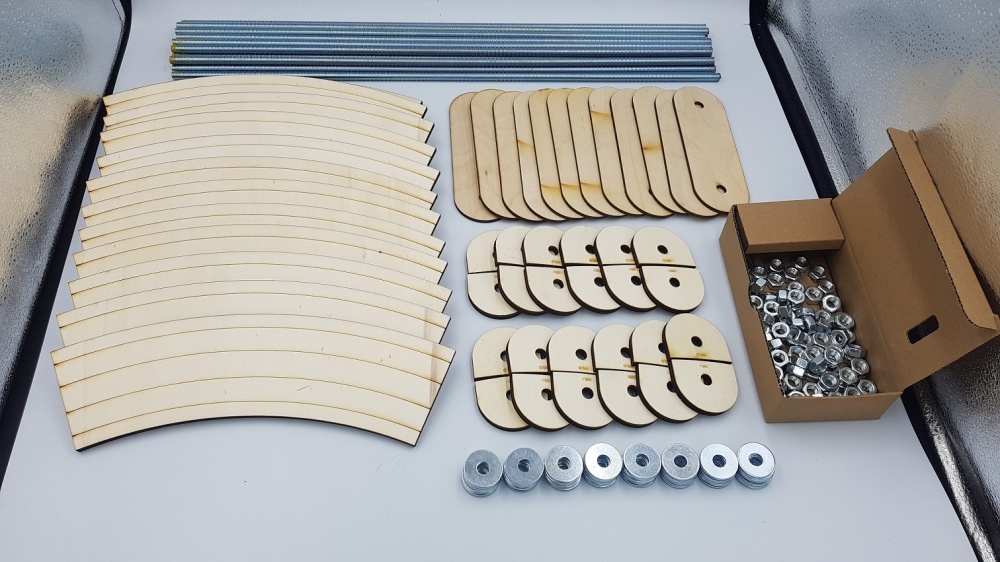

This pack comes with the following:

12x 1/8 circle sections with engraved lines to help with track laying

12x  Connecting bridges including 12x inner segment guides and 12x outer segment guides

16x  M8 Steel threaded rods cut to approx length of 300mm and all required nuts and washers

Additional complete circuits are available with each circuit rising approx 40 mm (this figure can be changed to suit requirements - please call to discuss), so a starter kit + one circuit would give you a rise of 112 mm, a starter kit and two circuits would give you a rise of 152 mm and so on.

Additional 1/4 and 1/2 circuits are also available on request, please call us.

You will need a minimum level surface area of 730 mm x 730 mm to fit this helix on and basic tools to complete your helix.

Other bespoke Radii are available to order please contact us for a quotation.

Please Note:

All Helices are made to order unless shown in stock. Time will be dependant on availability of wood from our suppliers.

No Baseboards are included, they are available to special order, please contact us for more info.

Photos are for illustration purposes only.
