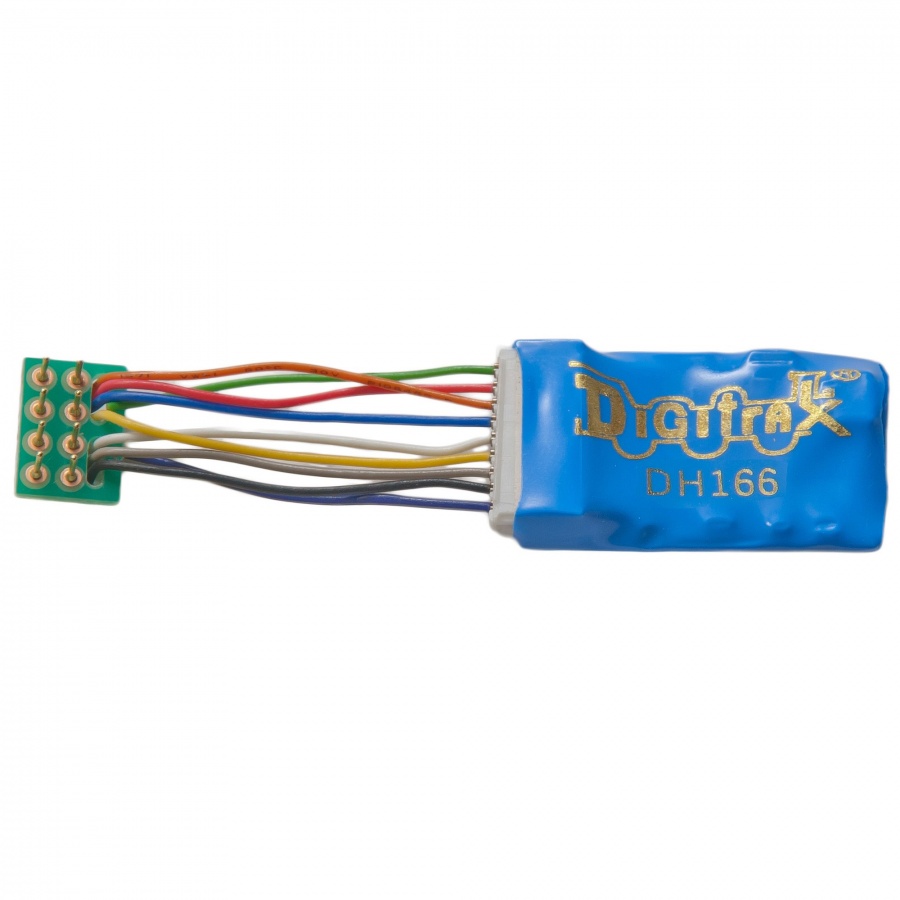

Digitrax DH166PS 1.5 Amp Premium HO Scale Decoder with Digitrax Easy Connect 9 Pin to DCC Medium Plug
- Size 1.0 harness. .672 x 1.074 x .259 17.08mm x 27.28mm x 6.6mm
- Digitrax Easy Connect 9 Pin Harness
- 1.5 Amp/2 Amp Peak Current Rating
- 6 FX3 Functions,
- 0.5 Amp Total Function Current Rating
FX3 Function outputs for prototypical lighting effects and on/off control: Constant Brightness Lighting with directional or independent control. Realistic Effects like Ditch lights, Mars lights, strobes, and many more FX3 & Standard Function Qualifiers operate functions based on direction, F0 on or off, direction and F0, and whether loco is moving. FX3 effects optimised for selectable LED or lamp operation Configurable FX3 Pulse Function available on all function outputs. Function Remapping for custom function setup. Master Light Switch turns off all lights & functions with one keystroke. Advanced Consist Function Controls
Digitrax LocoMotion System-Your locomotives look like the real thing.
- The Digitrax LocoMotion System makes them run like the real thing, too!
- Torque Compensation for smooth as silk silent operation.
- 128 Speed Step operation (14 or 28 steps can also be used).
- Momentum with acceleration and deceleration.
- Normal Direction of Travel is user selectable.
- Switching Speed feature for easier and faster access to yard speeds.
- 3 Step Speed Tables set start, mid and max voltage for custom control.
- 28 Step Speed Tables with 256 level resolution for precise control.
Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment.
- Series 6 Decoder Features.
- 2 Digit and 4 Digit Addressing.
- Basic, Advanced & UniVersal Consisting.
- SuperSonic motor drive for silent operation.
- Scaleable Speed Stabilization ( Back EMF) for smooth operations.
- Direct mode programming.
- Decoder Reset CV with or without speed table reset.
- Transponder Equipped ready for transponding on your Layout.
- Motor Isolation Protection helps prevent damage to your decoder.
- DCC Compatible.
- FCC Part 15, Class B RFI compliant.
- Digitrax No Worries Warranty.
Specifications
Current Rating-Motor 1.5/2.0 Amps Max
Size .672 x 1.074 x .259 (17.08mm x 27.28mm x 6.6mm)
Installation DCC Medium Plug Short Harness (read more)
Function Outputs 6 (read more) Function Type FX3 (read more) Features Series 6 (read more)
For Use With PX112-2 Current Rating-Functions 0.5 Amps total all functions
Original Release Date 02-04-2014
Warranty No Worries Warranty
