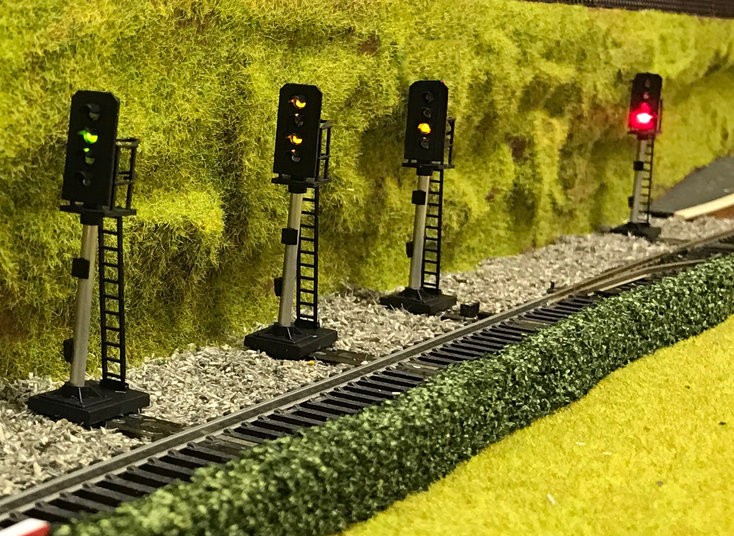

Train Tech SSP2 Sensor Signal Starter Pack comprising of four x TTSS3 3 Aspect Signals, one x TTMS1 Mimic Switch and 5m of connecting wire.

This Pack gives you 4 signals to Link together to give you fully automated 4 aspect signalling.

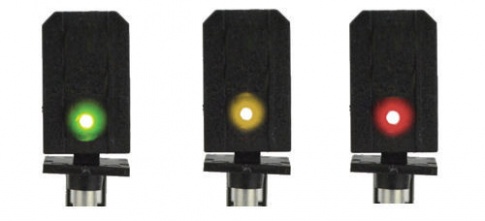

Sensor Signals äóñ Fully Assembled Automatic Signalling- You can now add automatic signalling to your layout in seconds with Train Tech Sensor Signals.

Signals with built in Sensors which operate automatically on their own. Can be linked to other Sensor Signals or Mimic Switches using a single wire.ξ On DCC they slide into the track like a power clip or they can be wired to work on analogue DC or digital DCC.

Sensor Signals work exactly like the real railway äóñ signals automatically turn Red when a train enters a block section to prevent other trains from entering the same block and preceding signals change accordingly.

A sensor is built into every signal so there is no wiring or extra circuit board.ξ Just clip the signal into your track or wire for fully automatic 2, 3, or 4 aspect signalling which works just like the real railway.

Quick and easy installation- everything is built into the signal.

Signal Senses the train and changes until the train is safely past.

Feathers or Theater indicators can be controlled by DCC or Mimic switch, and if points are controlled by DCC can be made to light automatically by giving them the same address.

Realistic lights fade between changes.

Can Link through socket to Mimic light using a single wire to show occupancy & position on a control panel (see Mimic Switches)

Links to other Sensor Signals with a single wire for fully automatic Block Signalling.

Fully built and ready to use signal, with all the electronics including sensor built into the signal base äóñ No other circuits or wires needed.

Automatic Function can be over ridden by either a Mimic Switch or DCC Command

On Digital DCC äóñ Just slide in or wire straight to the track for automatic or DCC control. On Analogue DC - Just wire to a regular 12-16v DC supply.

Assembled and tested and comes complete with a detailing kit; including ladder, handrail, phone, etc.

Fully Assembled DCC LED Signals and Signal Kits also available.



To use with Analogue DC it is recommended the fingers are removed and the signals are wired to a separate 12V supply. This will enable continuous operation.
